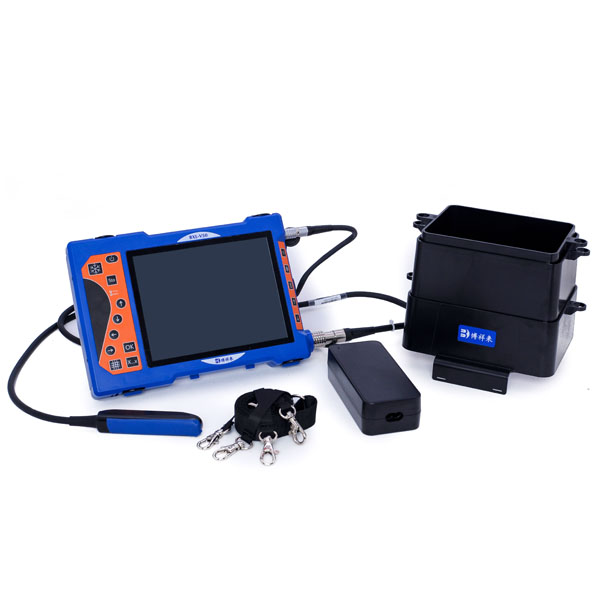

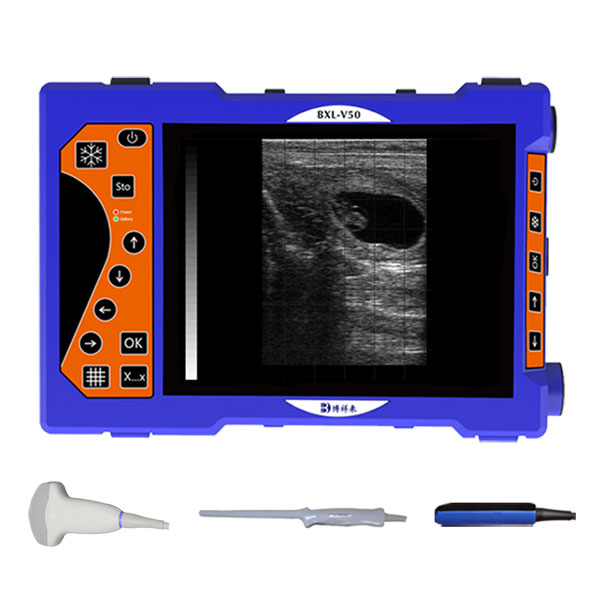

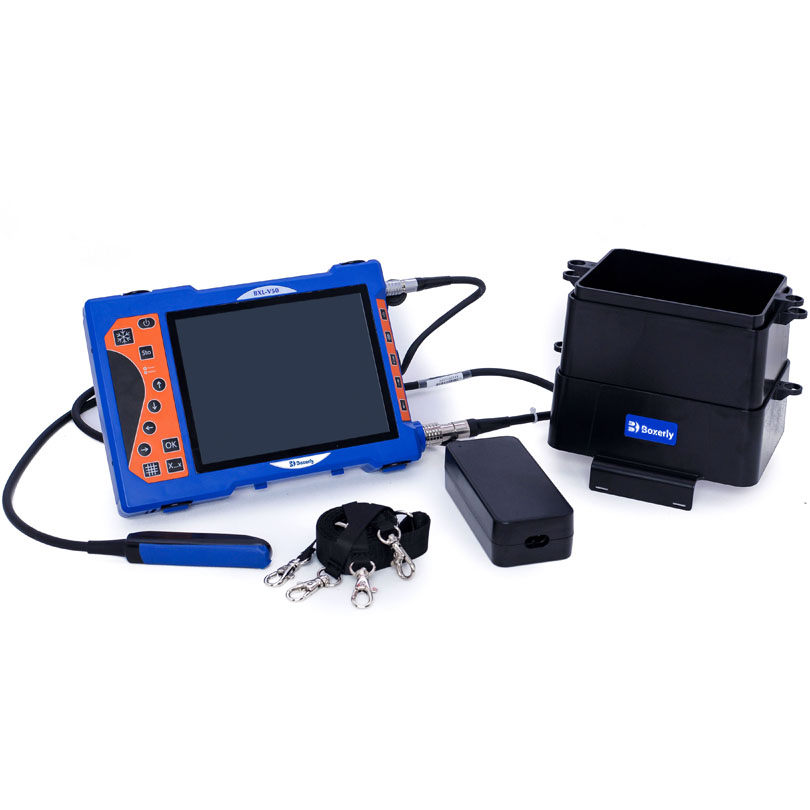

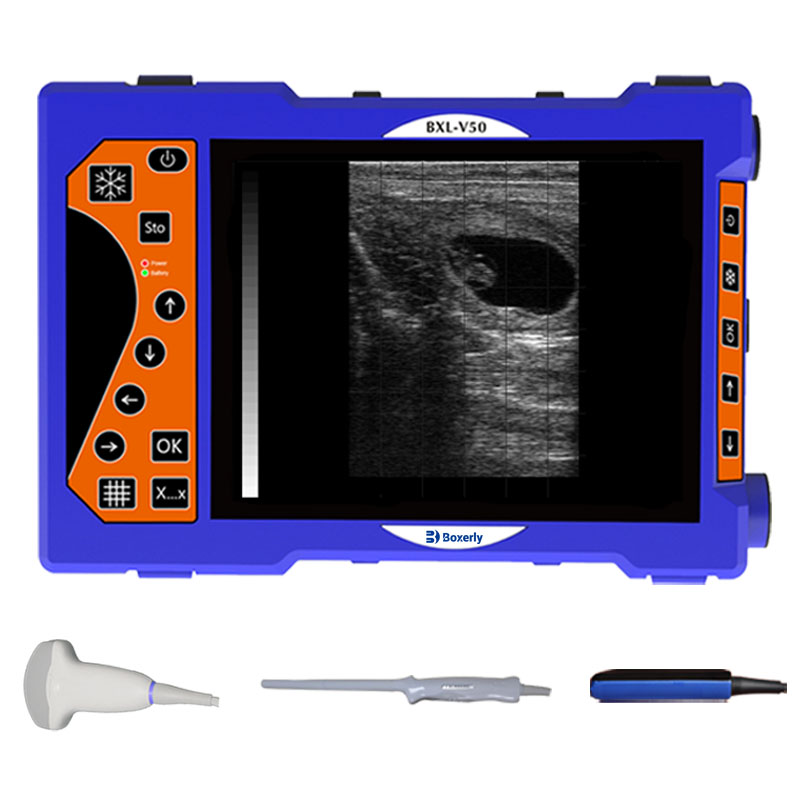

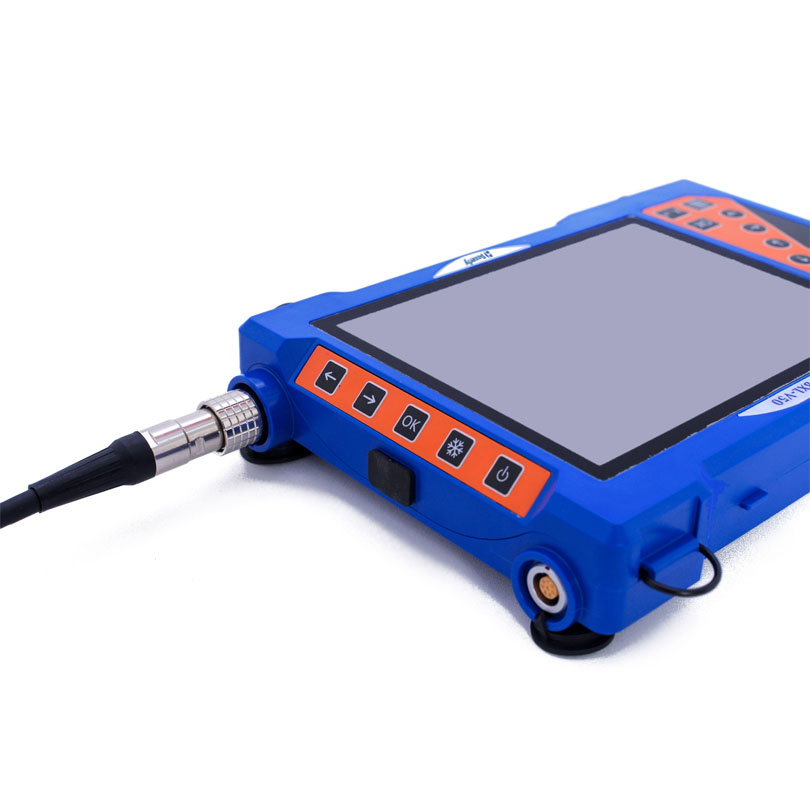

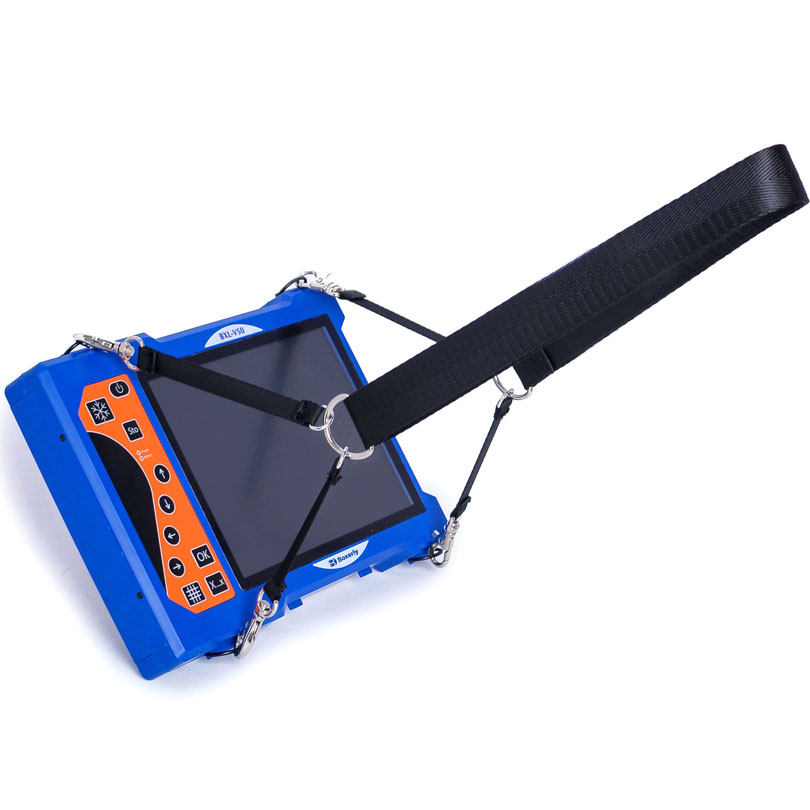

BXL-V50 Portable Veterinary Ultrasound Scanner

Product Features: Left/Right hand contol
Working: >6 hours
Screen: 8 inch HD LCD screen
Sunshade: sunshade
Weight: 1.2kg
Water-proof、Dush-proof、Drop-proof。
Description Technical Parameters Warranty Info
Description

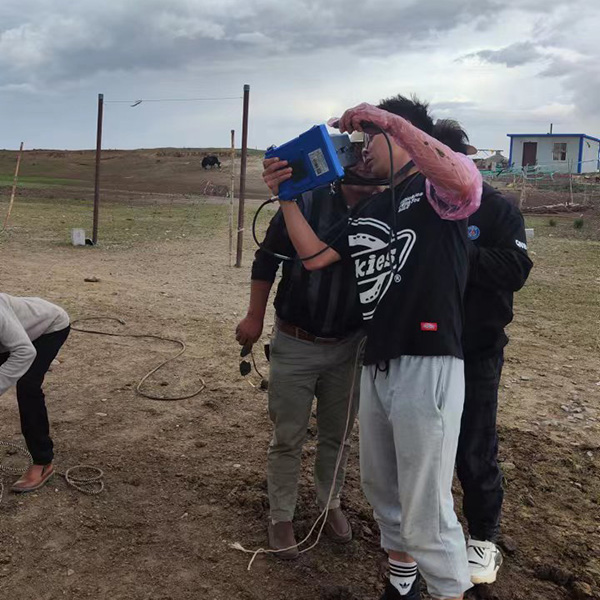

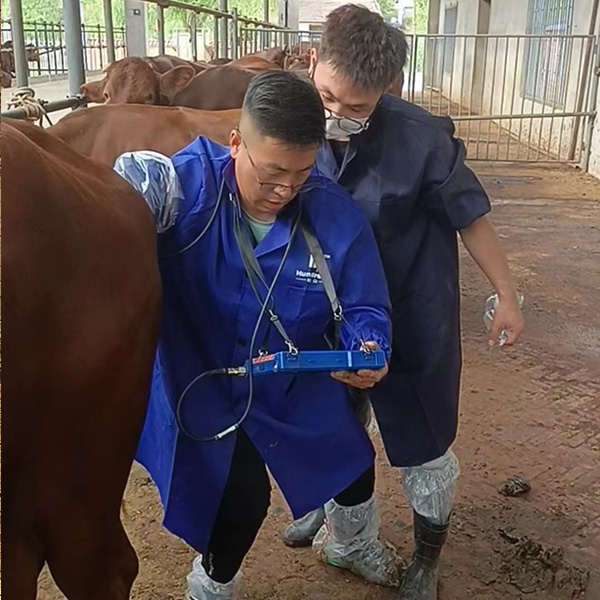

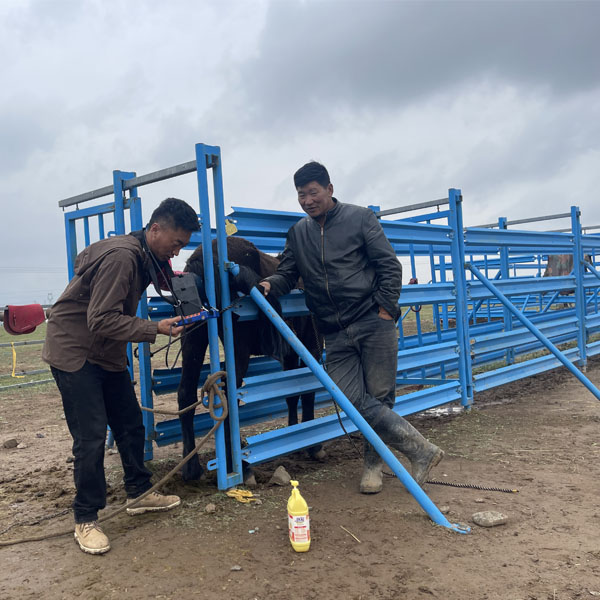

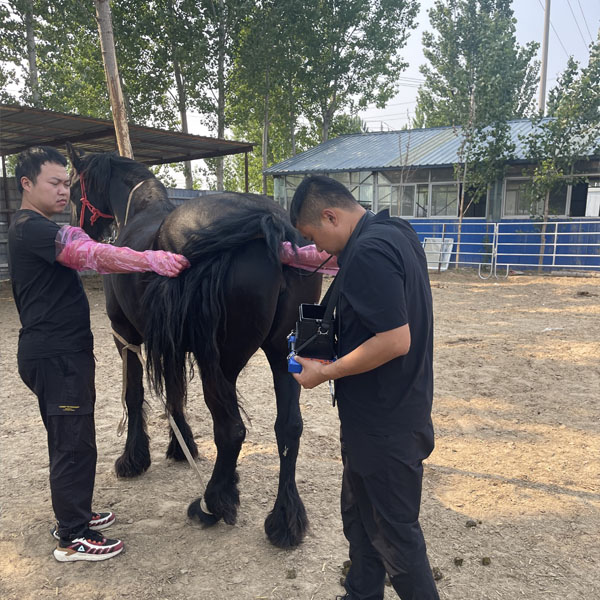

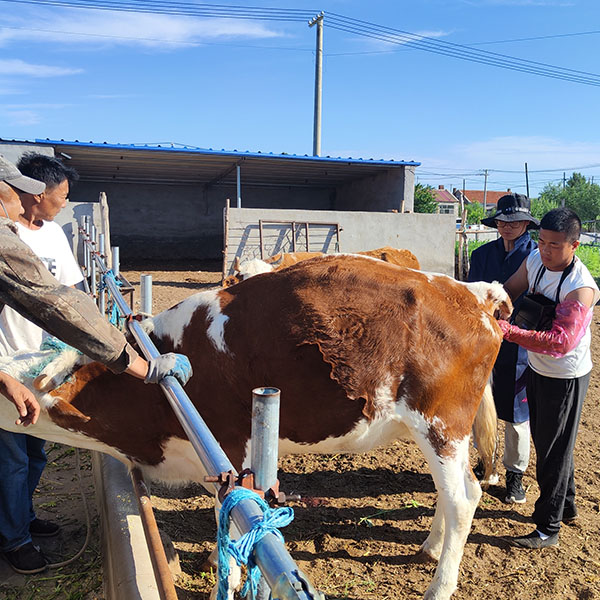

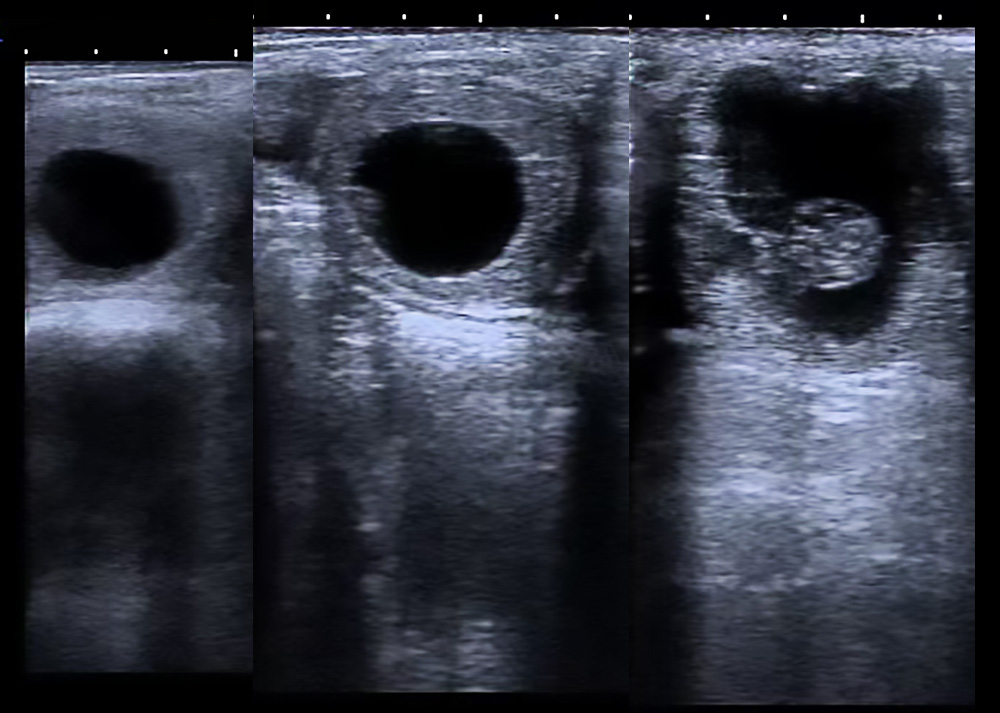

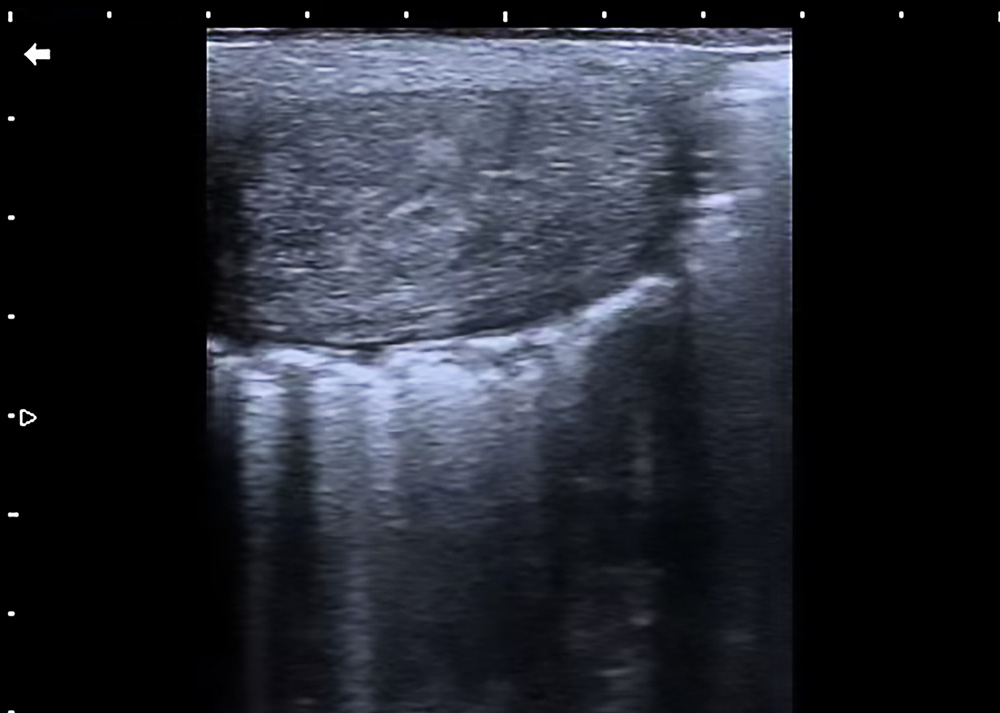

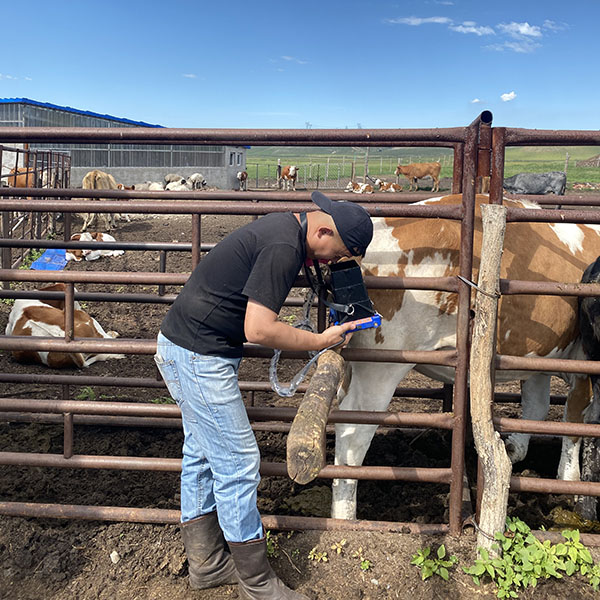

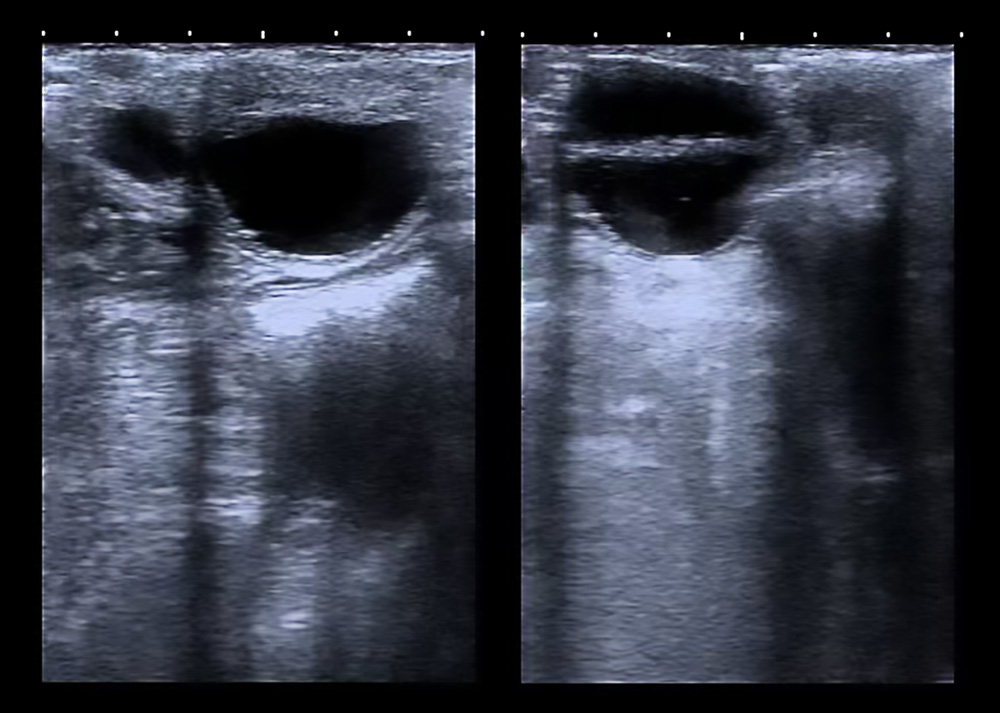

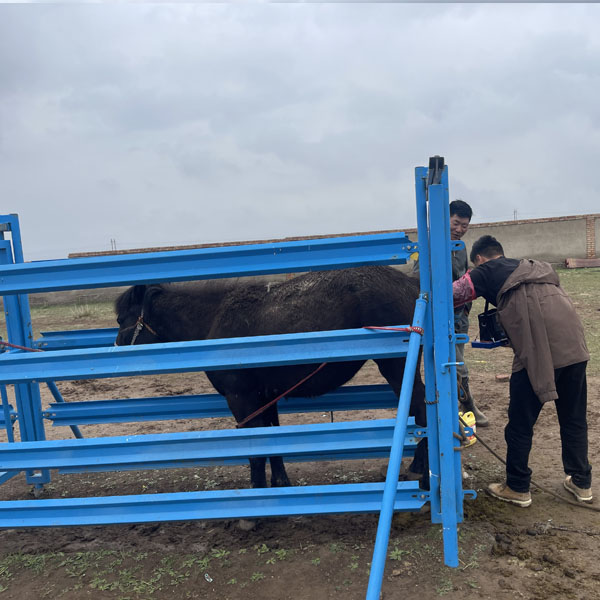

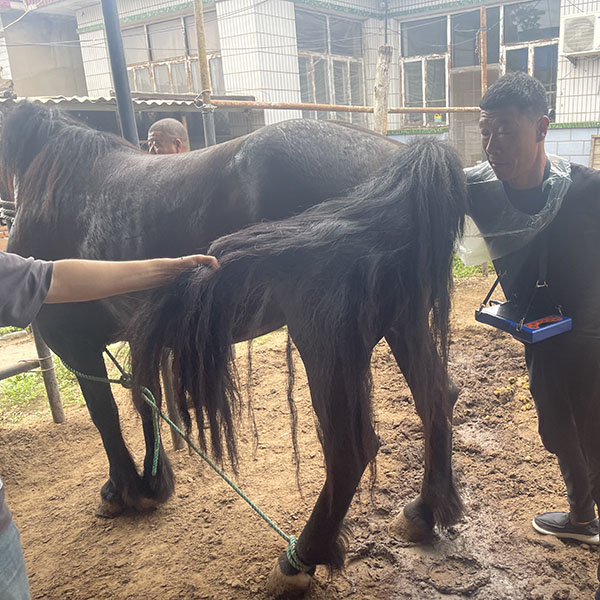

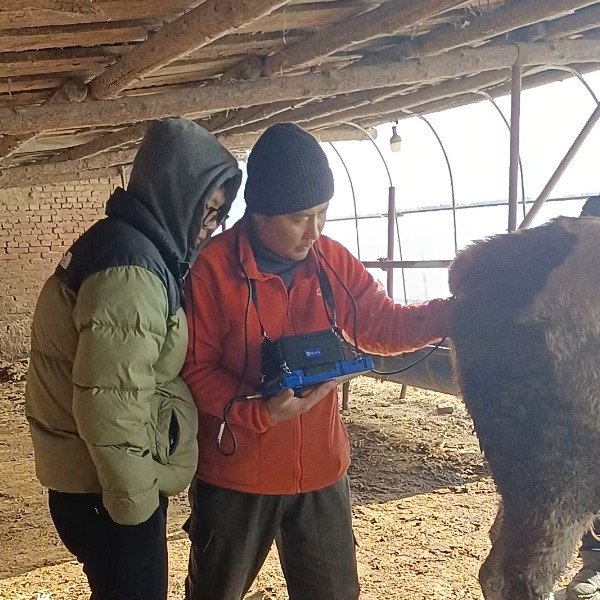

The Boxerly BXL-V50 portable Veterinary ultrasound scanner can detect early pregnancy, uterine inflammation, ovarian swelling, and fetal count in common livestock such as pigs, cows, sheep, horses, and donkeys.

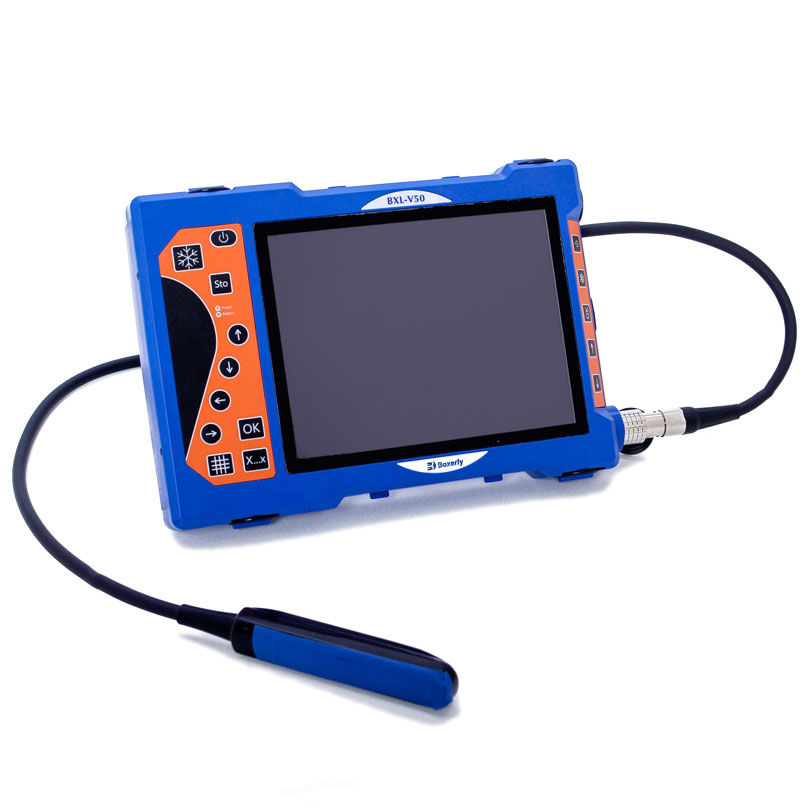

BXL-V50 Portable Veterinary Ultrasound Scanner(图1)

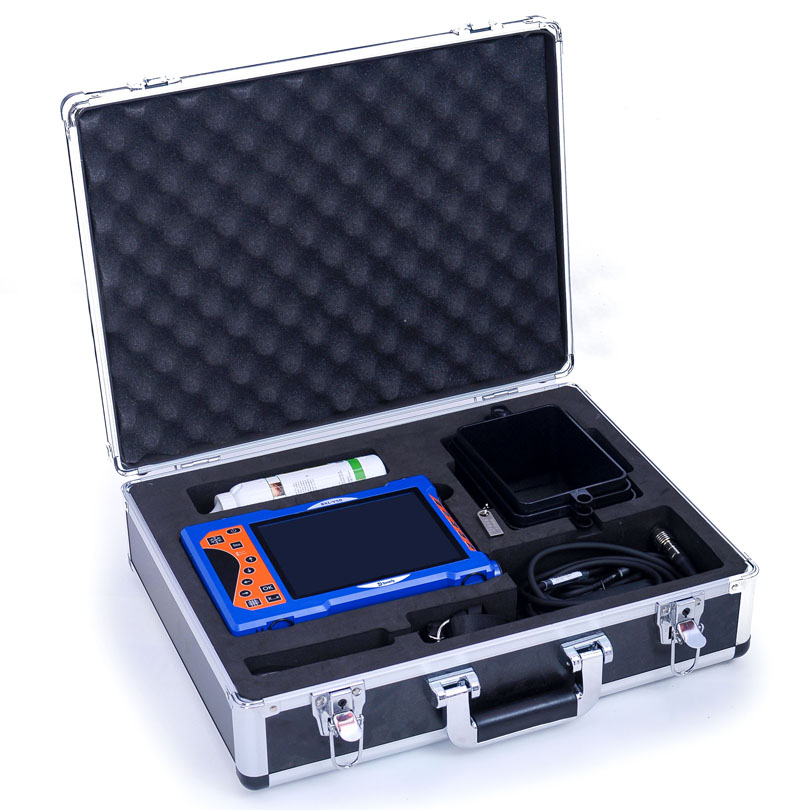

BXL-V50 Portable Veterinary Ultrasound Scanner(图2)

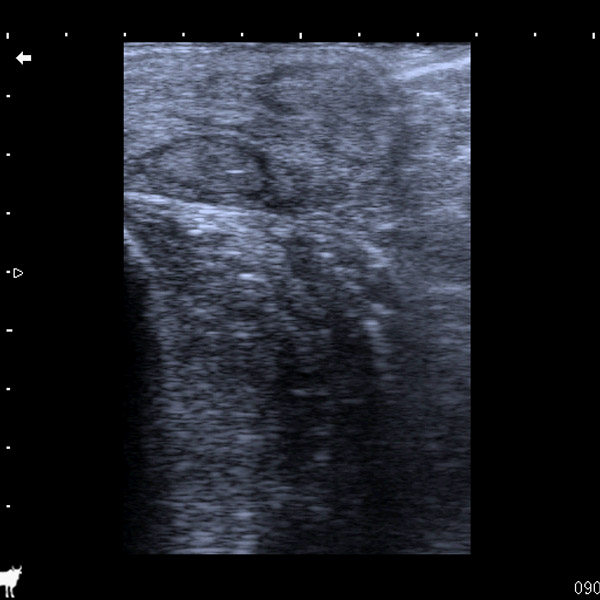

BXL-V50 Portable Veterinary Ultrasound Scanner(图3)

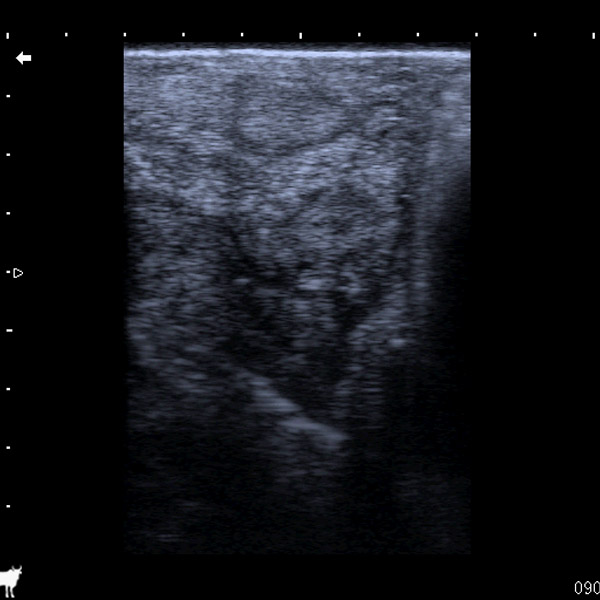

BXL-V50 Portable Veterinary Ultrasound Scanner(图4)

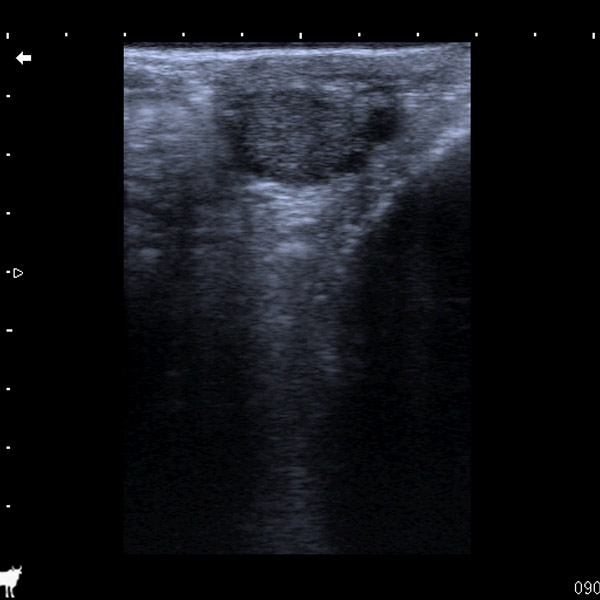

BXL-V50 Portable Veterinary Ultrasound Scanner(图5)

BXL-V50 Portable Veterinary Ultrasound Scanner(图6)

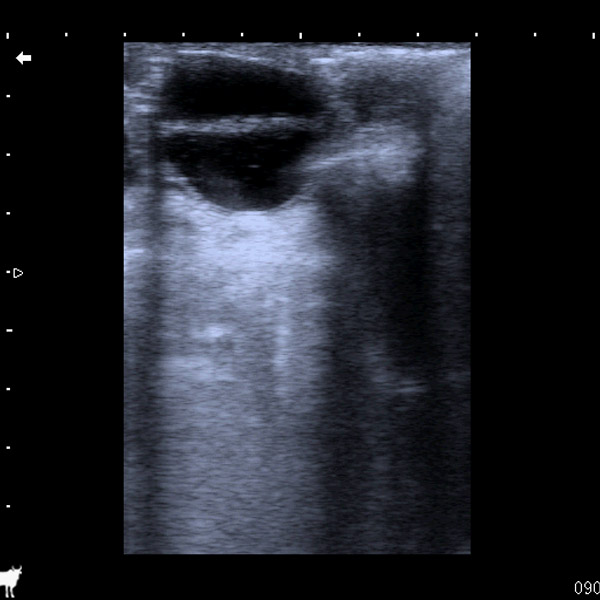

BXL-V50 Portable Veterinary Ultrasound Scanner(图7)

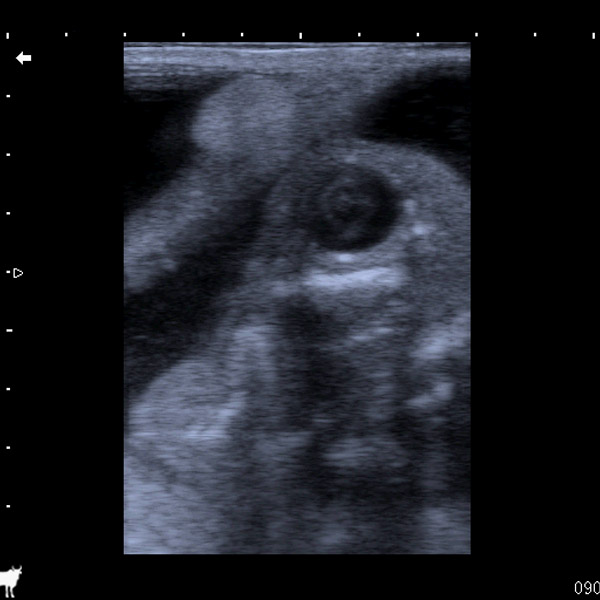

BXL-V50 Portable Veterinary Ultrasound Scanner(图8)

BXL-V50 Portable Veterinary Ultrasound Scanner(图9)

BXL-V50 Portable Veterinary Ultrasound Scanner(图10)

BXL-V50 Portable Veterinary Ultrasound Scanner(图11)

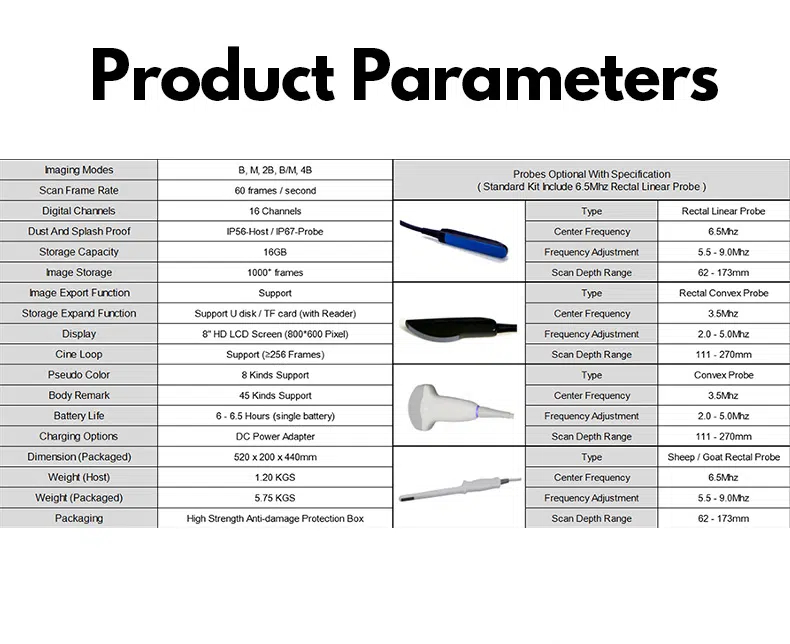

Technical Parameters

Technical Parameters

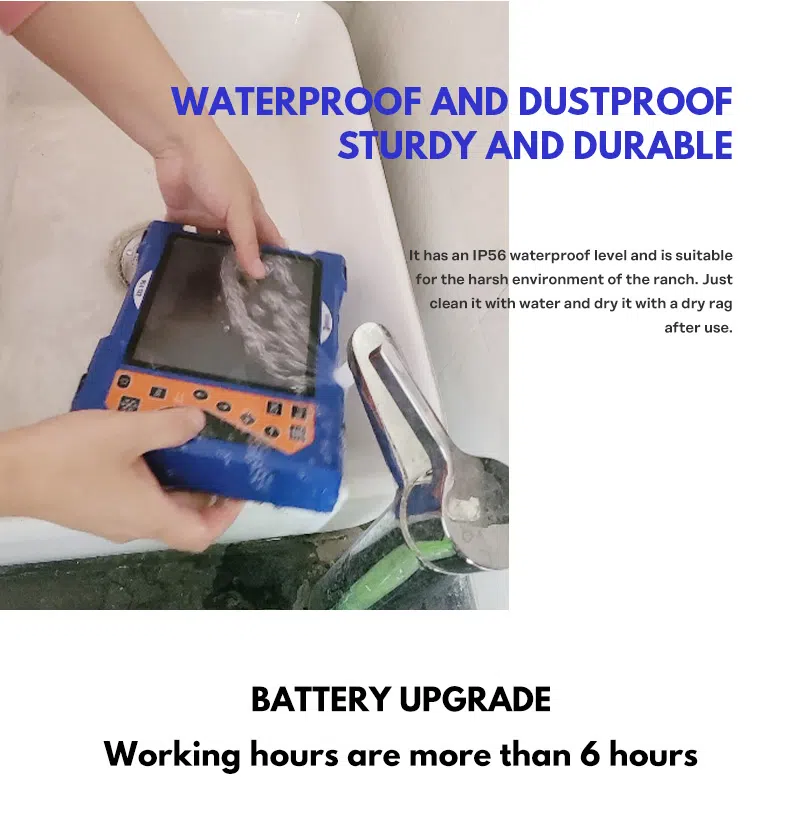

1. The whole machine is waterproof and dustproof, and the waterproof level is IP56; strong and durable

2. Left and right buttons (convenient for left and right hand operation)

3. Work for more than 7 hours on one battery

4. Display: 8.0-inch high-definition LCD display;

5. Measurement of back fat, eye muscle, automatic back fat thickness measurement, lean meat rate measurement function

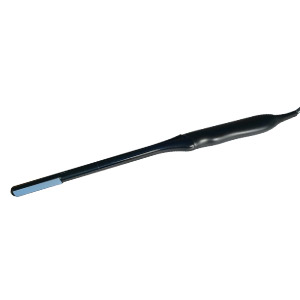

6. Probe upgrade, no appendages

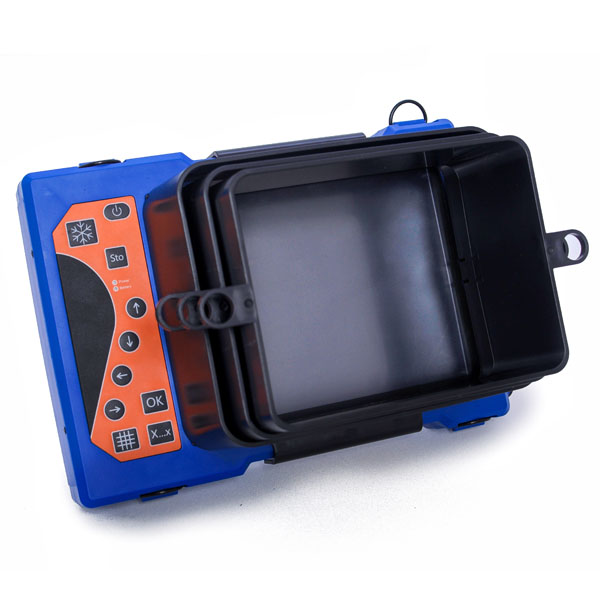

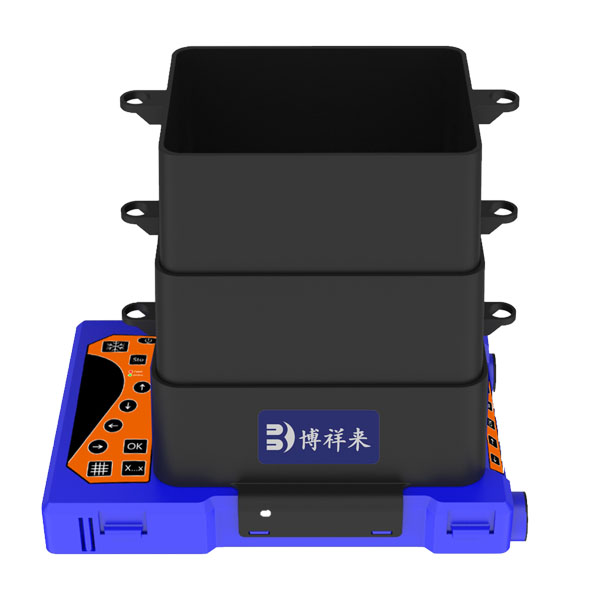

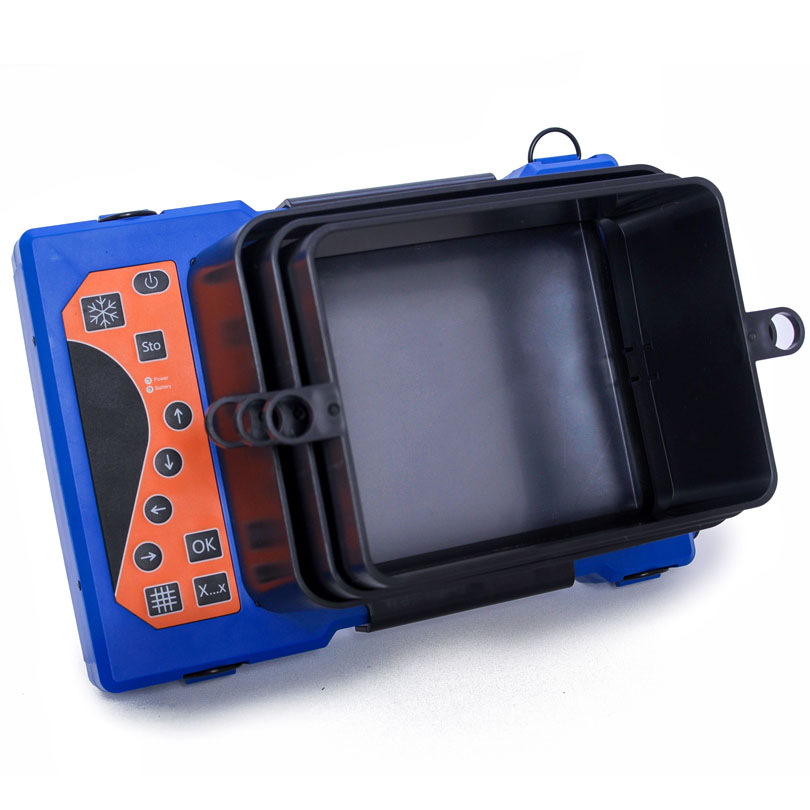

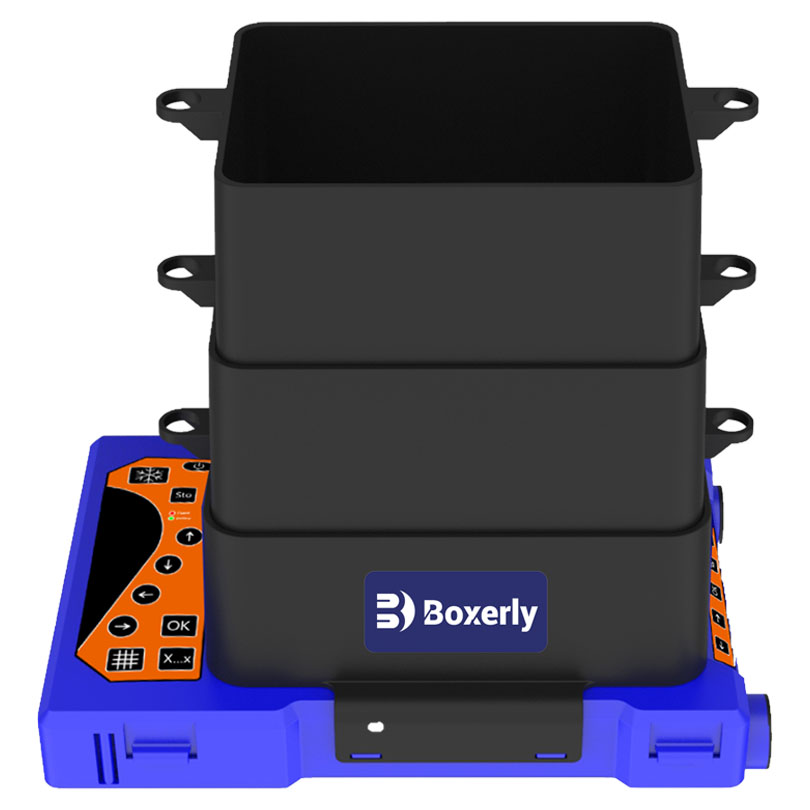

7. Professional customized sun visor, adjustable

8. One-key shutdown protection function

9. Position markings: beef cattle, dairy cows, buffaloes, goats, sheep, alpaca, pigs, cats, dogs, etc., no less than 45 kinds of animal position markings are optional;

10. Grayscale: 256;

11. Multiple fast measurement methods;

12.16 Number of channels;

13. Storage: One key storage; and support U disk storage preview, etc.

14. Host rated input: DC14V 3.0A;

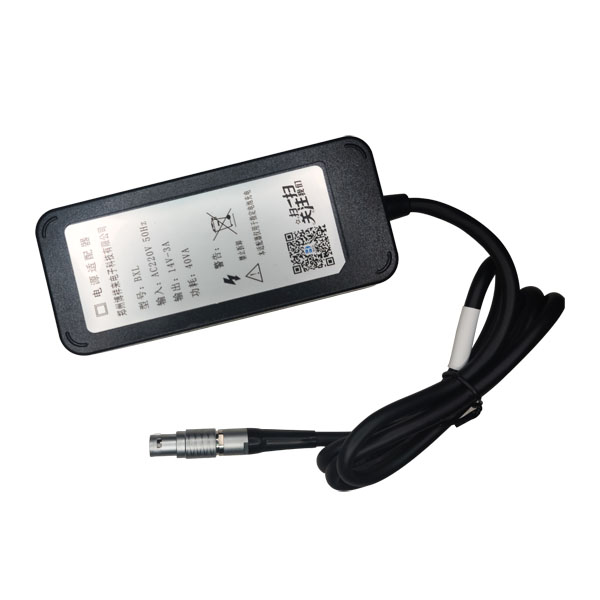

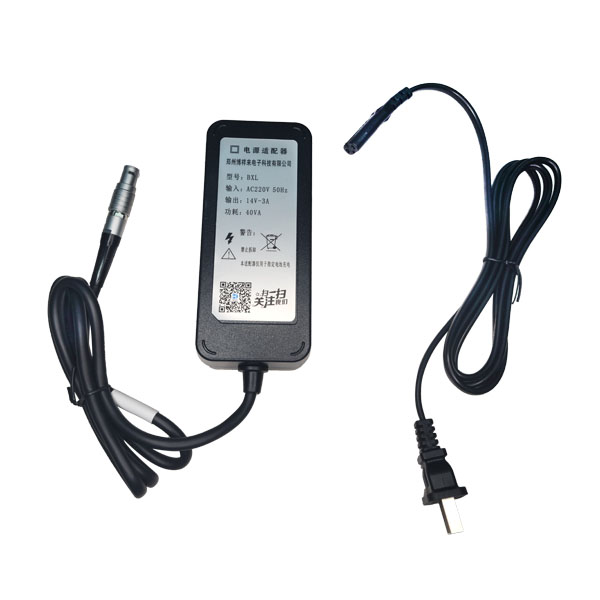

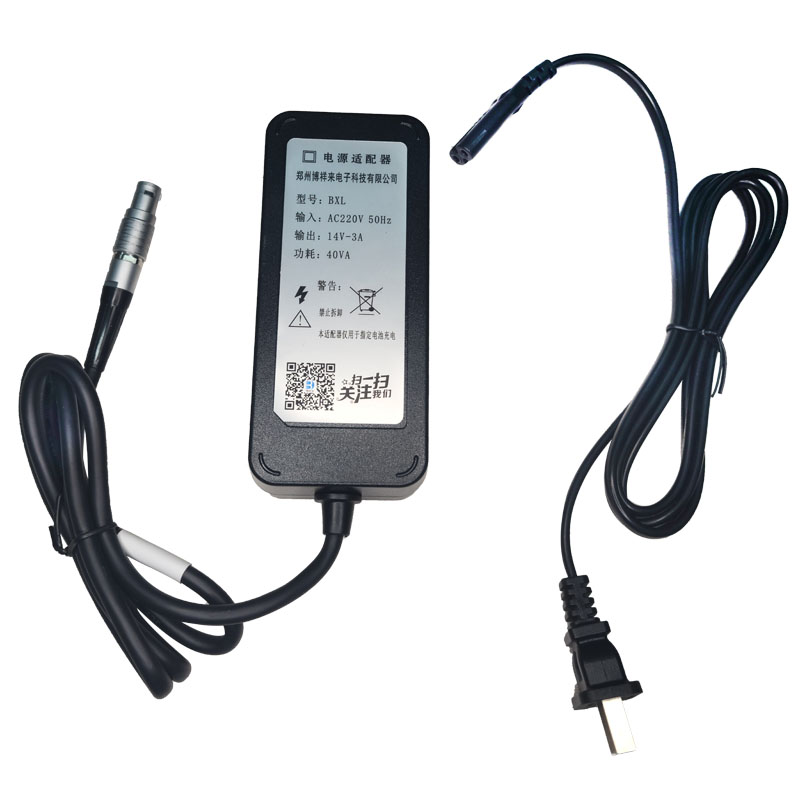

15. Adapter output: DC14.0V 3.0A;

16. Network power supply: 100-240V~1.2-0.6A Frequency: 50-60Hz;

17. Patented products, more than three patents

18. Weight: the weight of the whole machine is 1.2KG

19. Image frame rate: 60

20. Image U disk/TF card storage and browsing function;

21. Pseudo-color: a variety of pseudo-color processing;

22. Multiple system preset functions;

23. Host size: about 206 × 120 × 35 (mm, length × width × height);

24. Grid setting quick measurement function;

25.Host memory≥8G;


Functions:

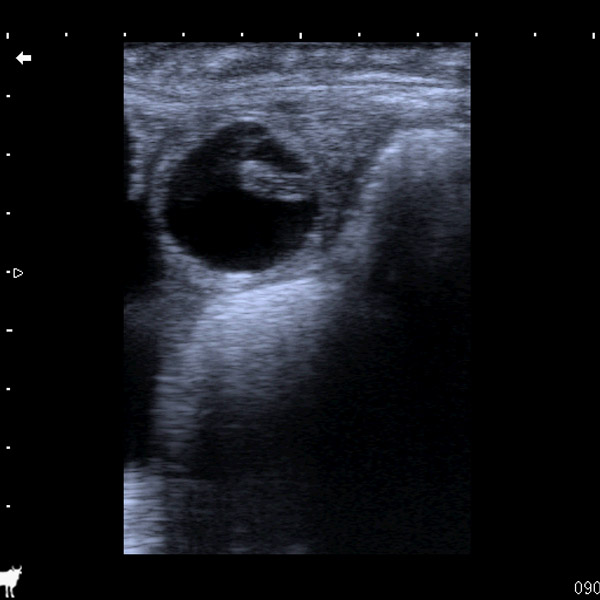

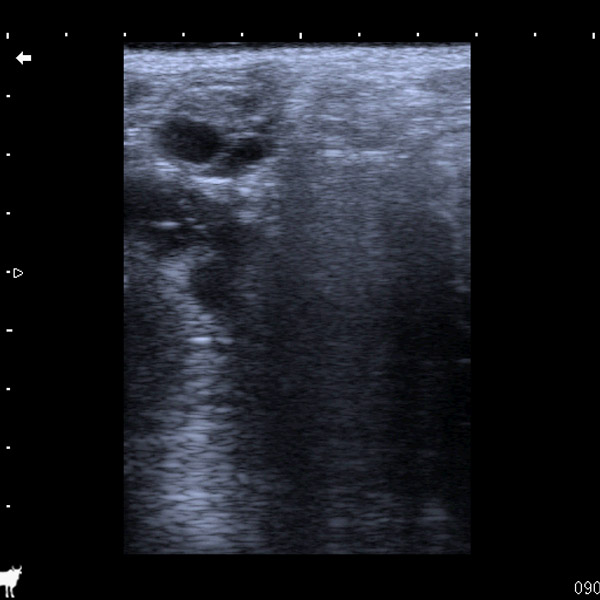

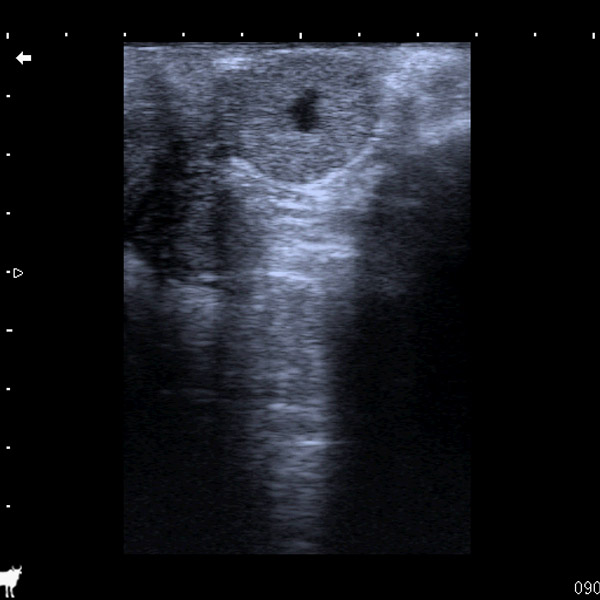

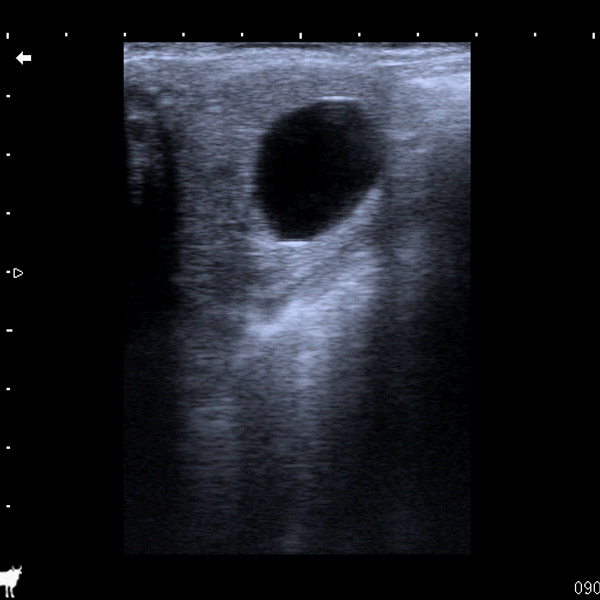

1、Detection of pregnancy, number of fetuses

2、Gestational week and expected date of delivery, distance, circumference, area, volume, heart rate, fetal weight of pigs, cattle, goats, horses, camels, dogs, cats, and sheep;

3、Detection of pig backfat thickness;

4、Obstetric disease detection;

5、One-key automatic detection of backfat function;


Features:

• Comfortable and easy vet ultrasound machine

• Accurate and fast cow pregnancy test

• Designed to be durable for everyday wear and tear on the farm

Warranty Info

Main unit: 18 months
Probe: 12 months
