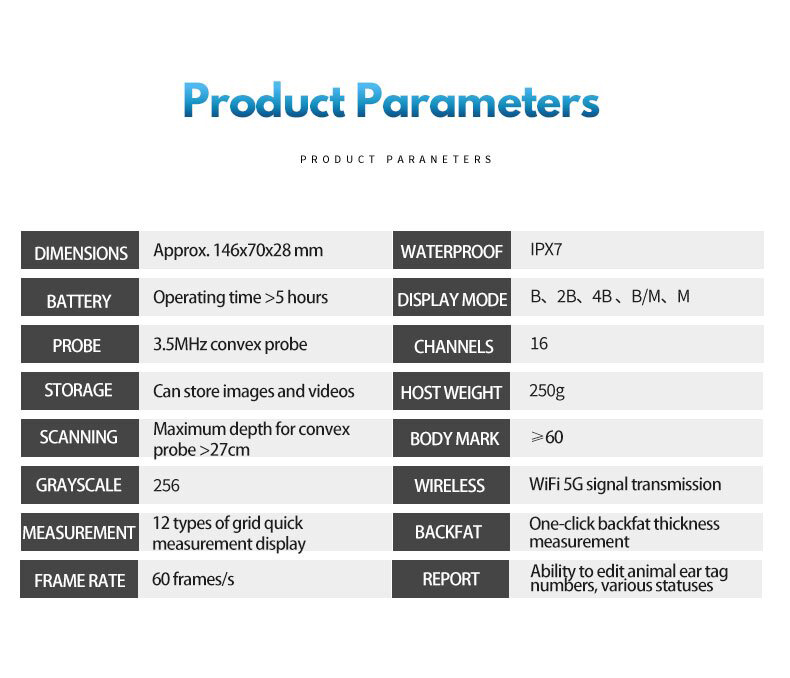

1. Technical parameters

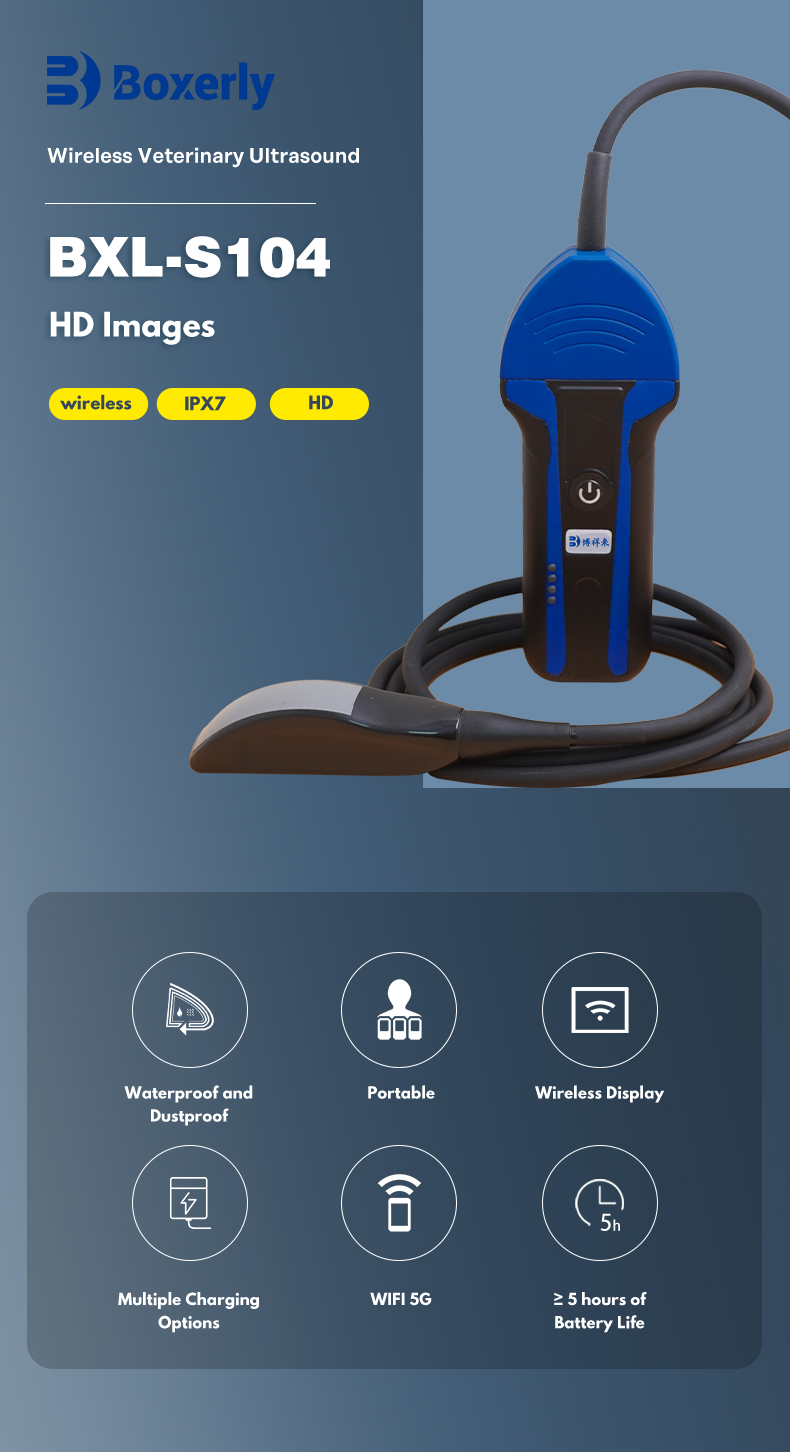

1.1. The whole machine is waterproof and dustproof, waterproof level IPX7; strong and durable
1.2. Fully digital wireless animal-specific ultrasound system, suitable for scanning cattle, sheep, horses, pigs, donkeys, camels, small animals, wild animals and other animals

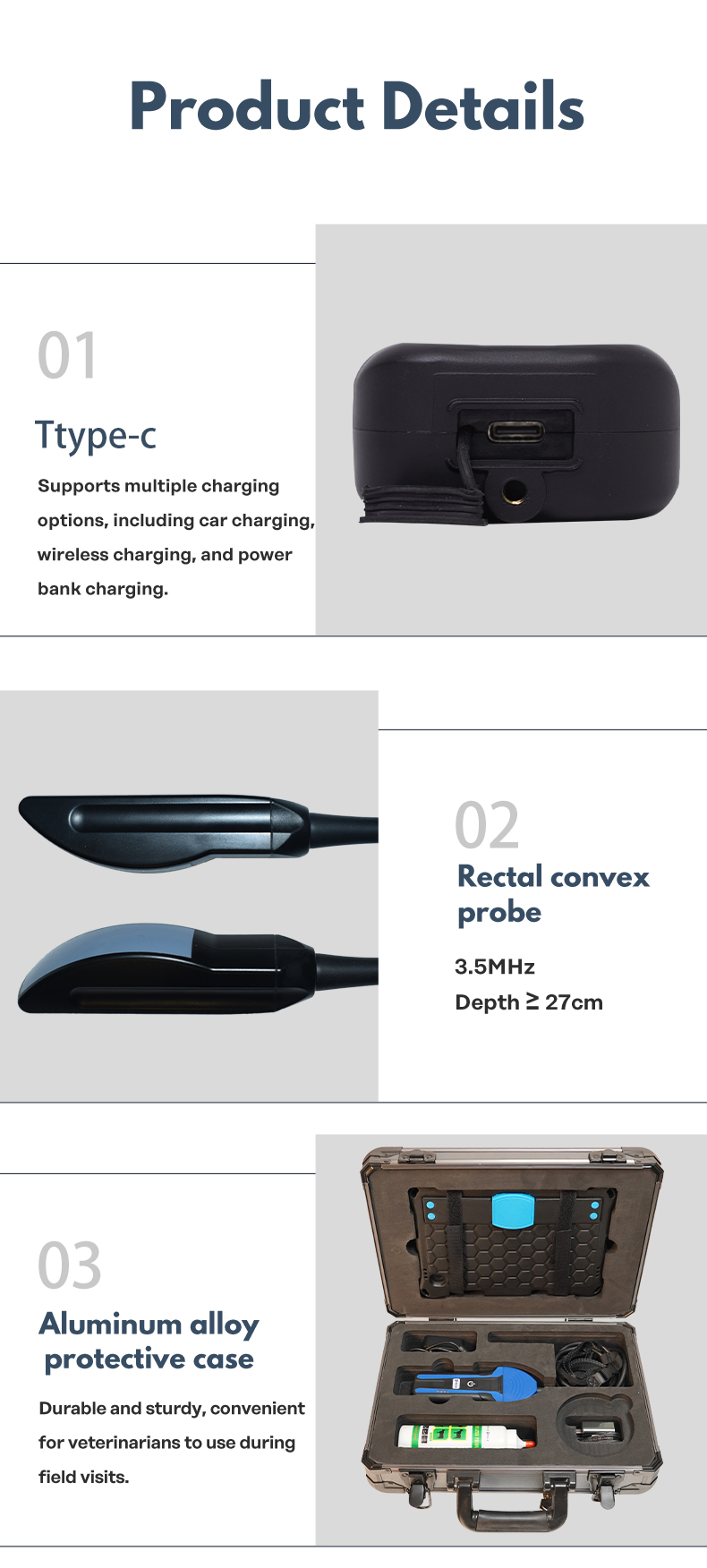

1.3. Built-in lithium battery, working time ≥5 hours. Type-c data cable charging, can be used for wireless charging, car mounting, fast charging, and power bank power supply
1.4. The host system comes with a Wi-Fi module to implement wireless transmission mode and 5G transmission.

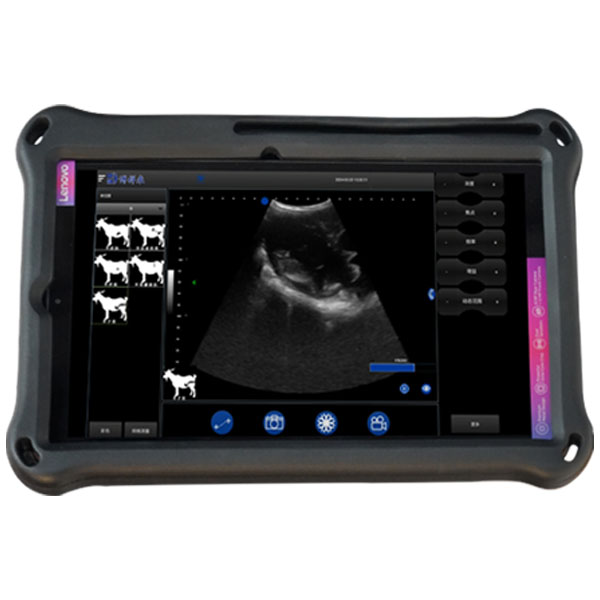

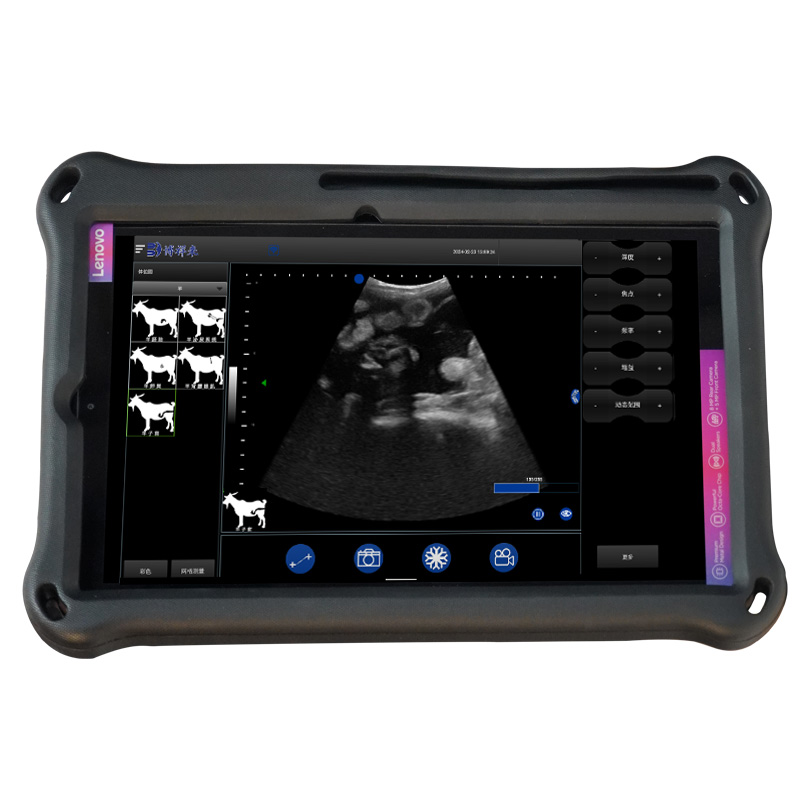

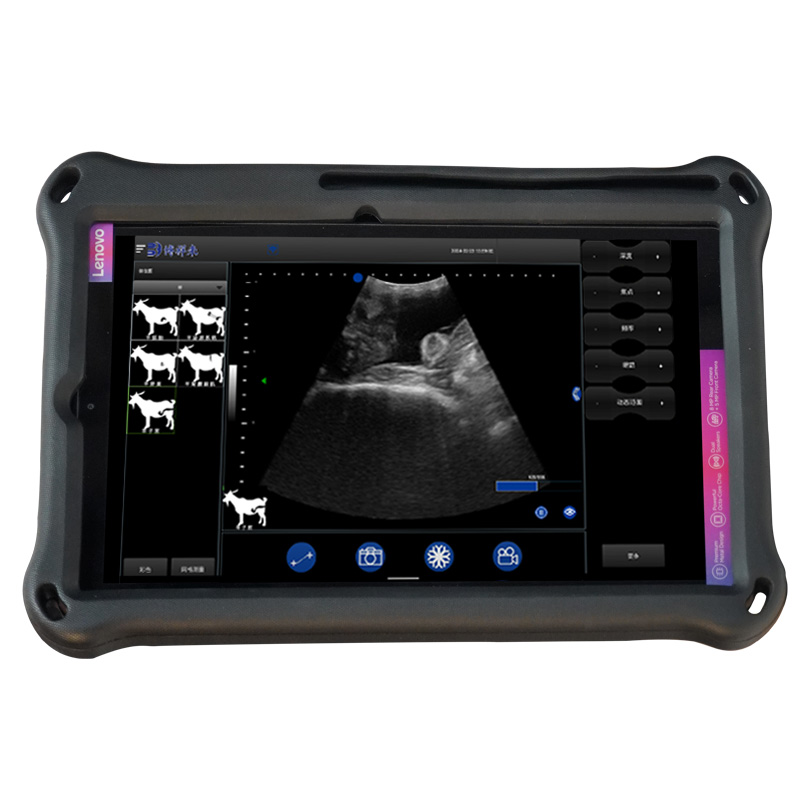

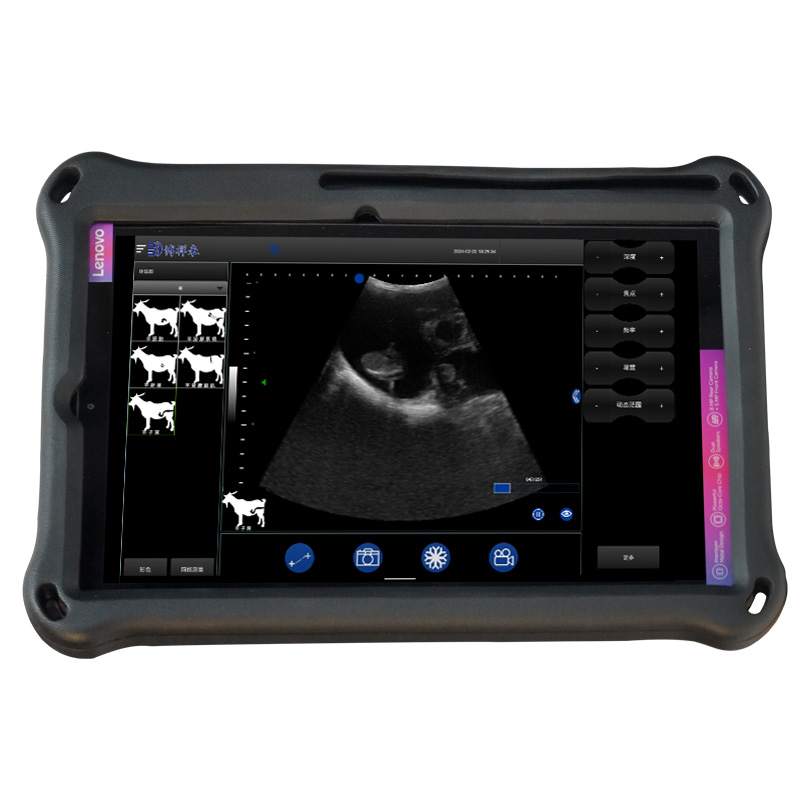

1.5. Wireless connection display supports: iPad tablets, smartphones, laptops, and desktop computers. Display size and resolution can be customized
1.6. Install a free APP wireless display on the monitor. The APP is compatible with operating systems: Android (Android), Windows (Microsoft)
1.7. Inspection type: The software has built-in inspection preset modes for embryos, ovaries, uteruses, urinary systems, backfat, and other parts of animals such as cattle, sheep, horses, pigs, donkeys, etc. Each mode can be selected for corresponding inspections and professional Measurement. Corresponding host parameters have been fixed in each mode. Check mode ≥ 30 kinds
1.8. Image display mode: B, 2B, 4B, B/M, M and other display modes.
1.9. Harmonic imaging: two levels Frequency: 2.9-5.0MHz Gain adjustment: 0-255 Dynamic range adjustment: 0-15 Transmit power: 0-3
1.10. Focus: 3-15 13-position adjustment
1.11. Scanning depth: Maximum depth of rectal convex array probe ≥ 27cm
1.12. Fragment gain: TGC eight levels adjustable, TGC can be adjusted with one click
1.13. Parameter sliding adjustment
1.14. With Chinese and English operation interface
1.15. System gray scale: 256 levels, system dynamic range ≥180dB, A/D conversion ≥12bit
1.16. Number of channels: 16
1.17. Host boot time: 1 second. The main unit has a freeze key fully digital beamformer

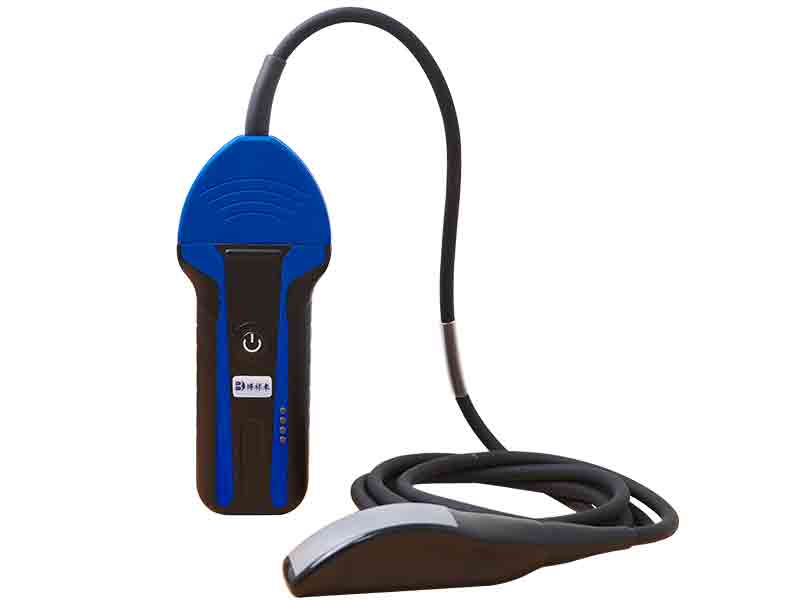

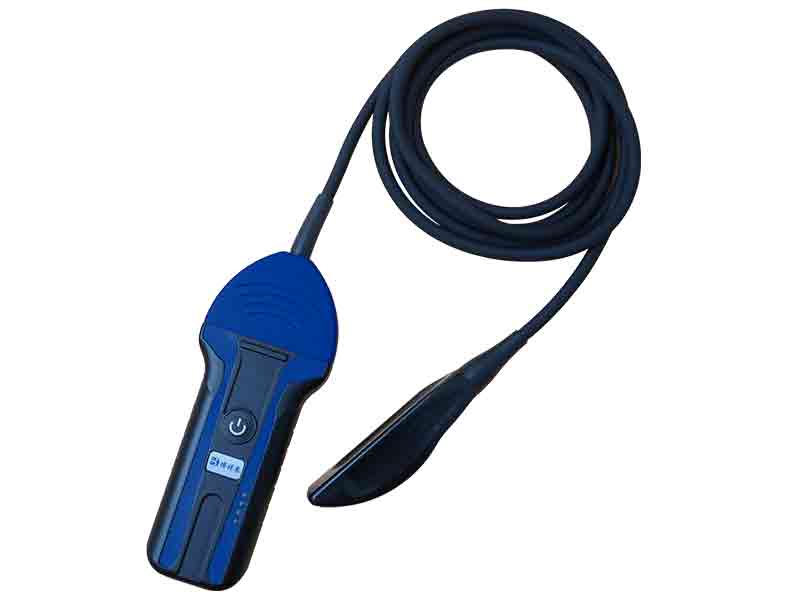

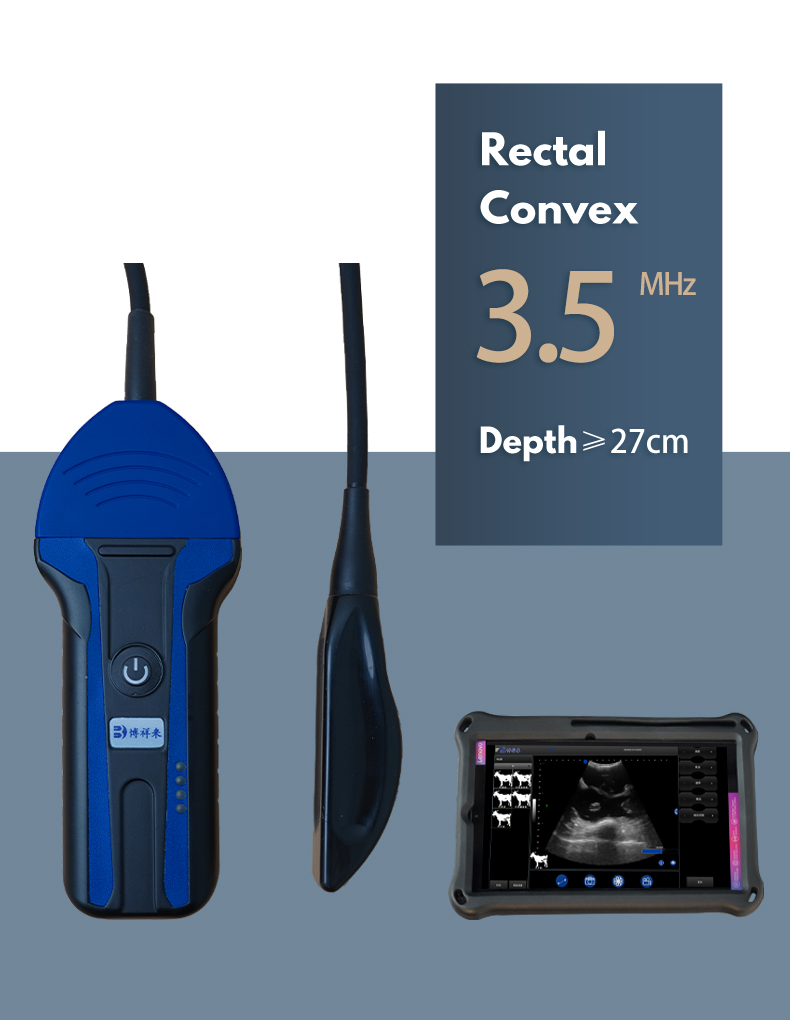

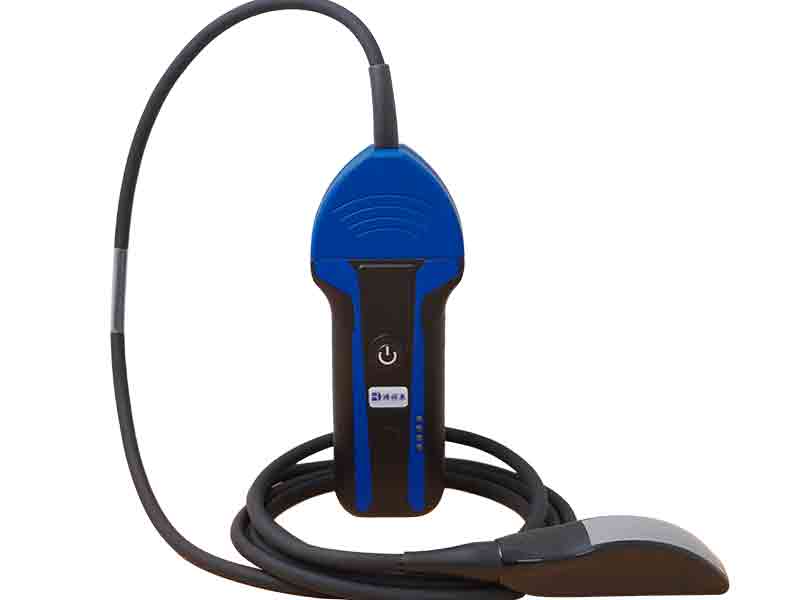

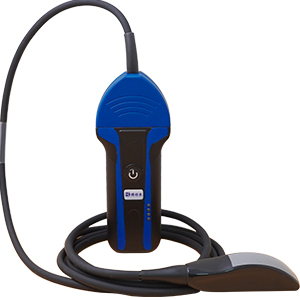

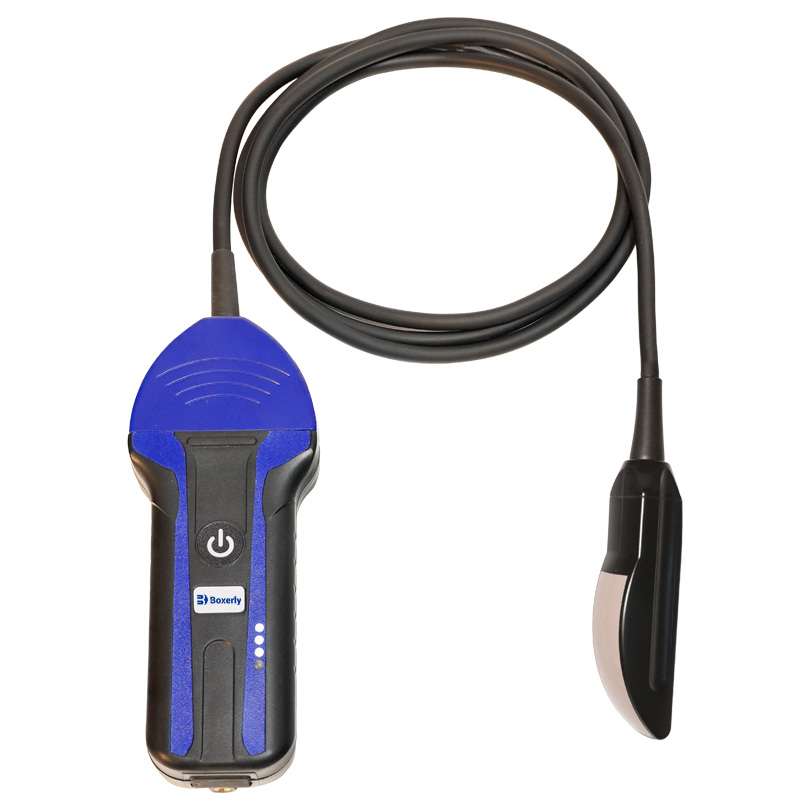

1.18. Host probe: 3.5MHz rectal convex array
1.19. Body markers: cattle (body markers of embryos, ovaries, uterus, urinary system, backfat, buttocks, etc.), pigs (body markers of embryos, ovaries, uterus, urinary system, backfat, buttocks, etc.), goats (Body markings of different parts of the embryo, ovary, uterus, urinary system, backfat, buttocks, etc.), body markings of different parts of buffalo, sheep, alpacas, cats, dogs and other animals, ≥60 types of body markings
1.20. Measurement and analysis: It supports basic measurements such as distance, perimeter, area, circle area, etc. It has a variety of professional animal obstetric analysis software packages and ≥30 animal obstetric measurement types. Heart measurement and other measurement functions
1.21. How to use the host: it can be buckled to the belt and can be held in hand. How to use the monitor: wrist, strap
1.22. Quick measurement function for grid setting, 12 types of grid quick measurement display; one-click backfat thickness measurement function
1.23. The extension rod can be quickly fixed with screws to adapt to animal inspection.
1.24. Multiple system preset functions, B-mode imaging can partially zoom in/out
1.25. Storage: Static image storage and preview, you can add body marks to the image when saving the image, dynamic movie image storage and playback ≥ 255 frames, expandable
1.26. Animal report: You can edit animal ear tag numbers, various statuses, etc. When saving this animal image, you can take photos of the animal for corresponding functions.
1.27. Host rated input: DC9.0V 2.22A; Adapter output: DC9.0V 2.22A
1.28. Power supply: 100-240V～0.8A Frequency: 50-60Hz
1.29. Patented products, patent number：
1.30. Weight: The weight of the whole machine is 250g (with probe)
1.31. Image frame rate: 60 frames/second
1.32. Host size: 146×70×28 mm (length×width×height);
1.33. Software version: animal-specific version

2 Main functions

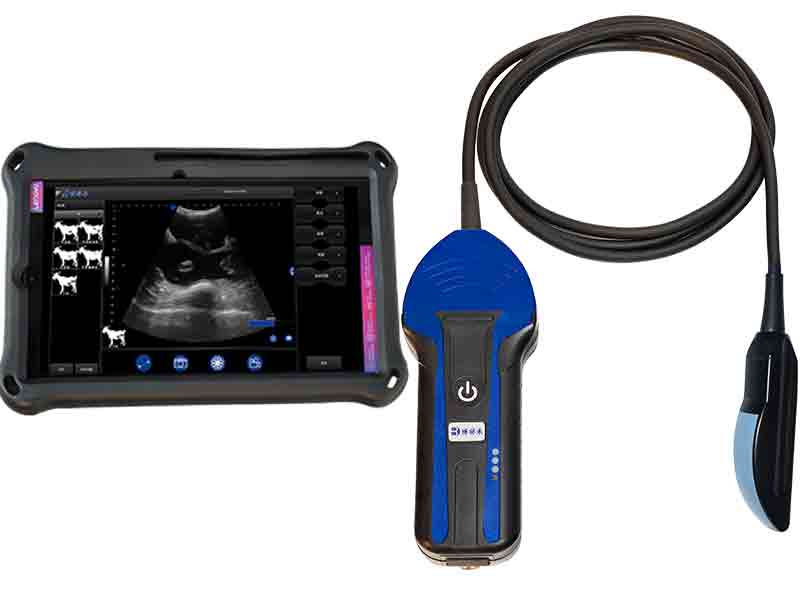

2.1. Wireless WiFi connection function for iPad tablets, smartphones, laptops, and desktop computers
2.2. Support full screen function
2.3. Support report preview function
2.4. One-click optimization function
2.5. Functions of THI tissue harmonic imaging technology
2.6. With digital focus function
2.7. Speckle noise suppression technology function
2.8. Support spatial composite imaging function
2.9. Support two-dimensional image angle deflection function
2.10. Support parameter sliding adjustment function
2.11, 5G transmission, fast image transmission speed
2.12. Can clearly judge animal pregnancy, uterine disease, ovarian disease, and ovary detection
2.13. Small weight, easy to carry, multiple carrying methods
2.14. The operating system supports remote online free upgrade function
2.15. Parameter setting function corresponding to various body marks

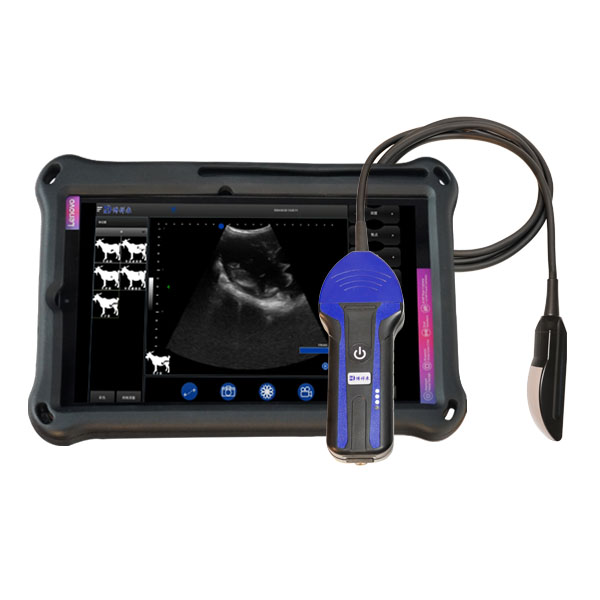

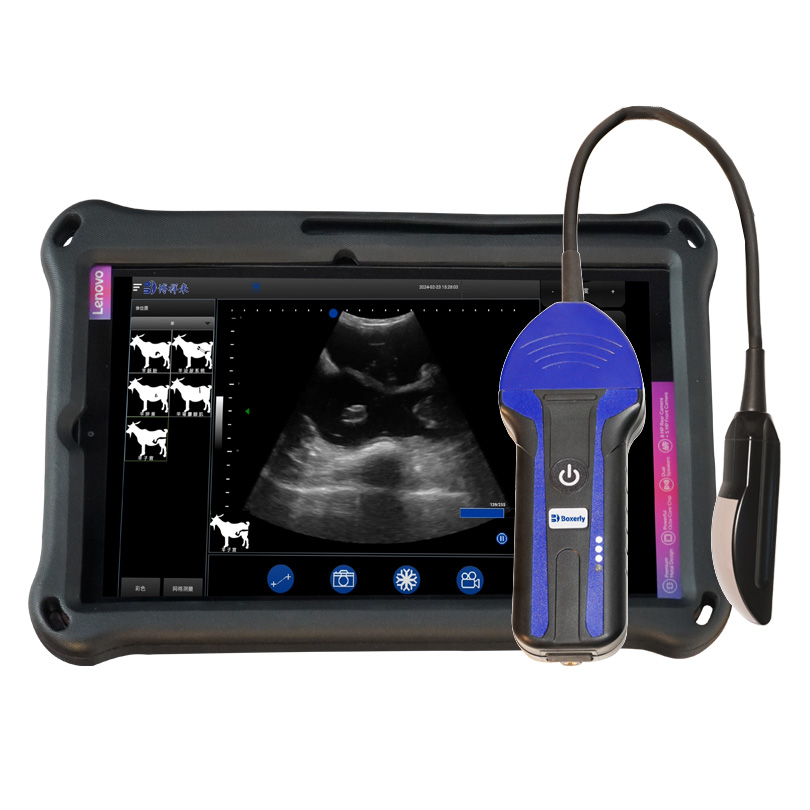

Standard Configuration:

Host 1 PC
flat panel display 1 PC
Flat screen display protective case 1 PC
Shoulder strap 1 PC
adapter 1 PC
Learning USB flash drive 1 PC
Instructions/certificate/warranty card 1 PC
suitcase 1 PC

Optional accessories:
Wireless charger
extension rod

Main unit: 18 months
Probe: 12 months
